Gen 1 2019-2021 44.5 kWh total (42.5 kWh usable)
| Nominal voltage | 355 V |
|---|---|
| Operating range | 310–404 V* |
| Protocol | CAN bus (500 kbps), SAIC/MG EV-CAN. |
| Home use (V2H) | Supported via Battery-Emulator (stationary home storage)* |
| Cooling | liquid |
| Battery-Emulator support | · GitHub |
| Built-in contactors | Yes (source) |
| Dimensions | Not confirmed |
|---|---|
| Weight | 370 kg |
| Cell configuration | 96s |
| Connector | CCS Combo 2 |
| Connectors | CCS Combo 2 / Type 2. |
| Used | from £1,779 3 |
|---|
* Data sourced from dalathegreat/Battery-Emulator firmware driver specifications and the Battery-Emulator Wiki.
Live eBay UK listings, fetched 25 October 2026. Prices and availability change.

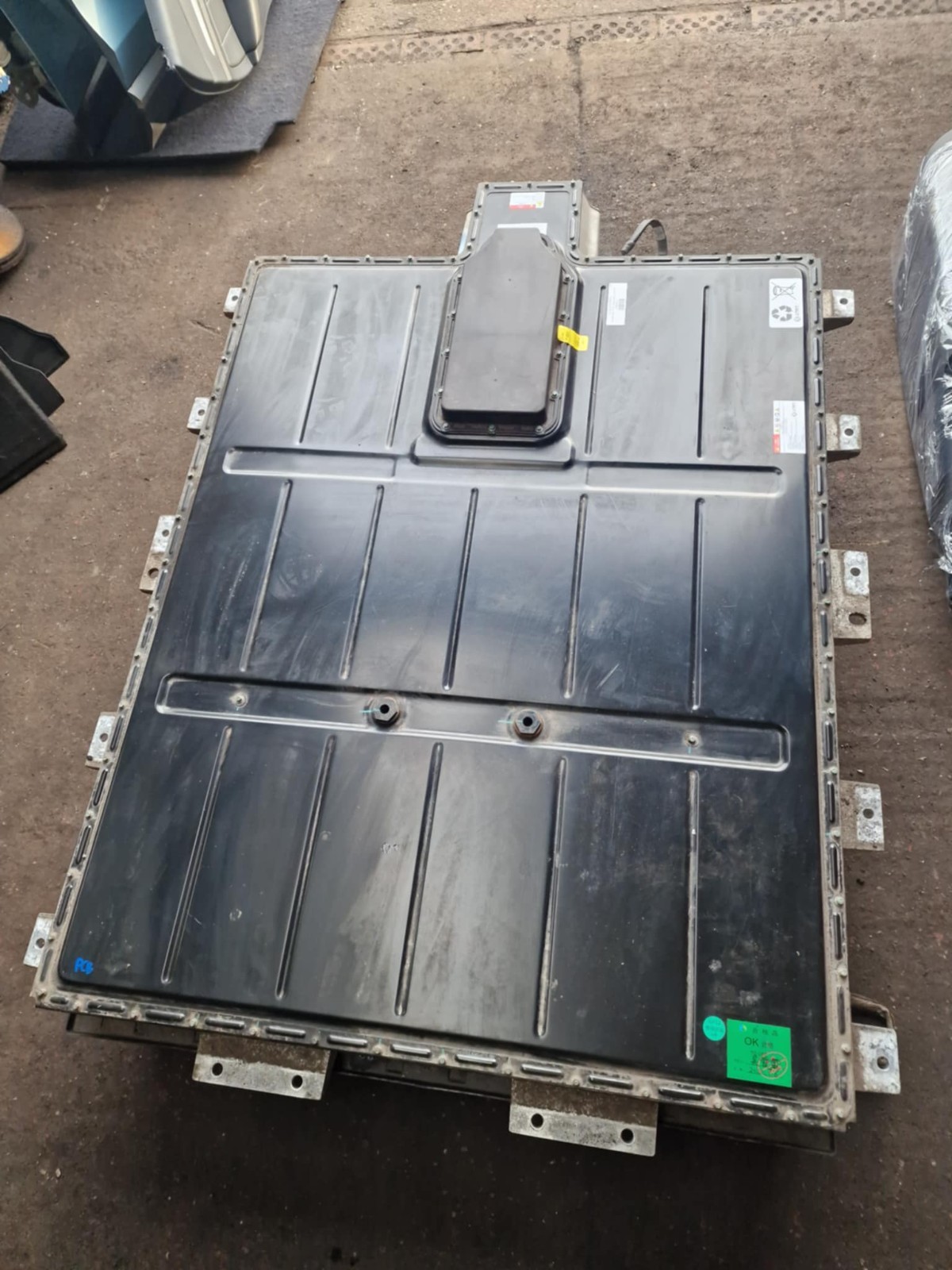

96s CATL prismatic string. SAIC/MG Gen 1 BMS reports cell voltages, module temperatures, and current over CAN at 500 kbps.
CATL NMC prismatic cells in 96s arrangement, liquid-cooled with integrated die-cast aluminum frame. Voltage operating range 310.0–404.0 V*. Widely available in the UK and Australia from accident-damaged vehicles.
Inspect underside pan for impact damage; check for moisture ingress on early 2019 breather valves before commissioning.
